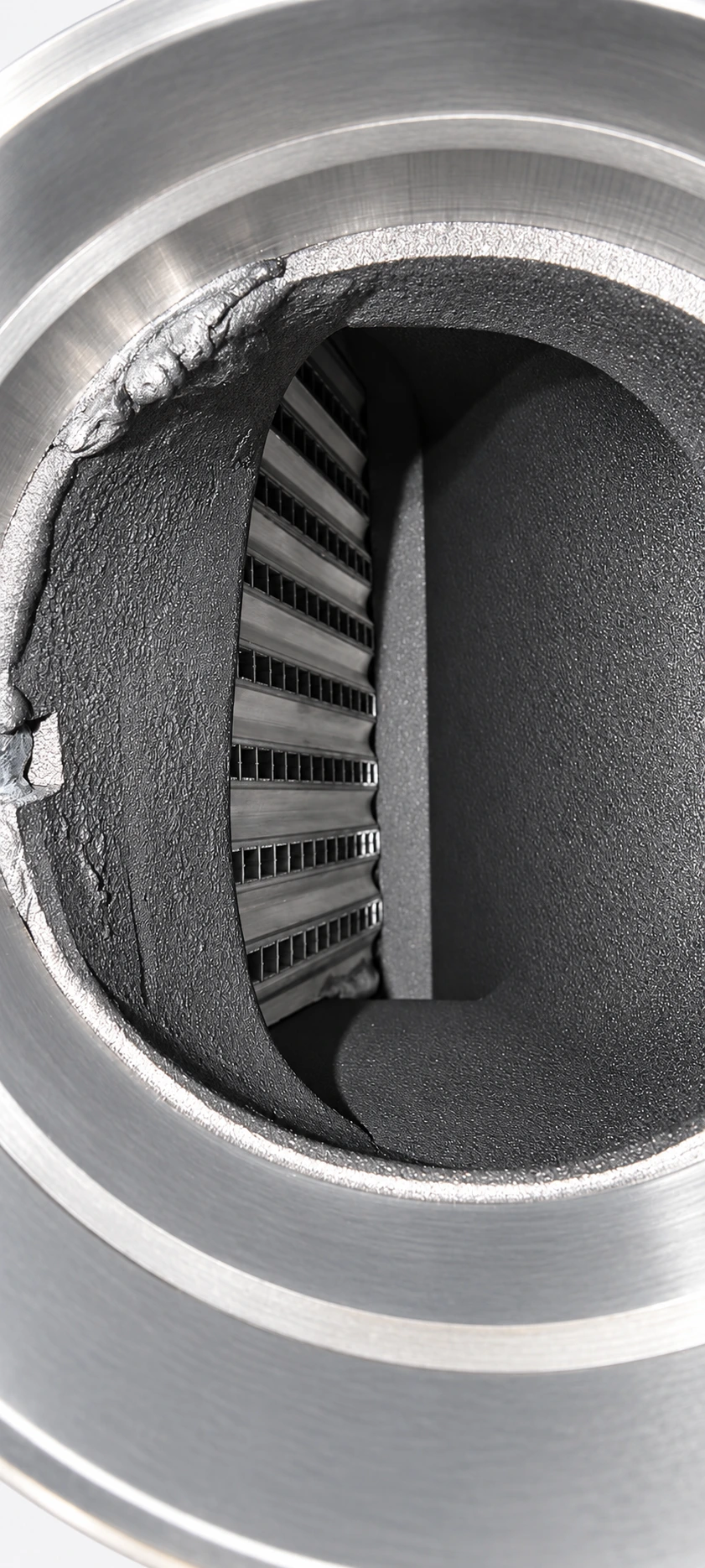

Single-row construction
Full-depth tubes form the thicker core without a joint between two tube rows.
Actual product and internal tube views.
BMW · NEW TUBE-AND-FIN SERIES
BMW 135i / 1M / 335i / 335is / Z4 — New Tube-and-Fin Intercooler
E82 / E88 / E90 / E91 / E92 / E93 / E89. A thicker core formed with a single row of full-depth, multi-channel charge-air tubes. Black finish with machined aluminum air connections.
Request a quoteNEW TUBE-AND-FIN DESIGN
One tube row across the core depth.
The thicker core uses a single row of full-depth tubes. Each charge-air tube contains multiple parallel internal passages — a multi-channel “harmonica” profile. Core depth is formed in one tube row, without joining a wide and a narrow tube row.
Multi-channel charge-air passages
Parallel internal passages are incorporated into the tube profile.
Low pressure-drop design
Developed to limit charge-air pressure loss through the core. Pressure drop is evaluated at the specified airflow and operating conditions.
Core and charge-air tube details.
APPLICATION REFERENCE
Vehicle applications.
| Model | Chassis | kW | PS | Year |
|---|---|---|---|---|
| BMW 135i | E82 / E88 | — | — | 2008–2013 |
| BMW 1 Series M Coupé (1M) | E82 | — | — | 2011–2013 |
| BMW 335i / 335xi | E90 / E91 / E92 / E93 | — | — | 2006–2011 |
| BMW 335is | E92 | — | — | 2009–2013 |
| BMW Z4 sDrive35i | E89 | — | — | 2009+ |
| BMW Z4 sDrive35is | E89 | — | — | 2010+ |
Confirm engine, production date, connector configuration and exact vehicle before ordering.
