Toyota JZX100
1JZ-GTE
OEM-location Side Mount Intercooler
Chaser · Mark II · Cresta
A customer-supplied 3D assembly, developed into the finished side mount intercooler shown here.
FROM CAD TO PRODUCT
The design. The assembly. The finished part.
CUSTOMER CADDrag to rotate · Scroll to zoom · Keyboard: arrow keys, + and −
Customer 3D design
The supplied STEP assembly contains two shaped end tanks and a simplified solid core envelope.
CAD and assembly stages are illustrative. The model uses a solid core envelope; detailed fins and finished welds are visible in the real product photographs.
PRODUCT REFERENCE
Built around the side mount layout.
- Application
- Toyota JZX100 / 1JZ-GTE · Chaser, Mark II, Cresta
- Product type
- Side mount intercooler for the OEM location
- Project input
- Customer 3D STEP assembly
- Finish
- Natural aluminum
- Dimensions & fitment
- Confirm the vehicle and selected variant with your quotation
CUSTOM DEVELOPMENT
From your drawing to a product.
Share your 3D model, connection requirements and mounting layout. We can review a custom intercooler project with you.
Discuss your drawingFINISHED PRODUCT

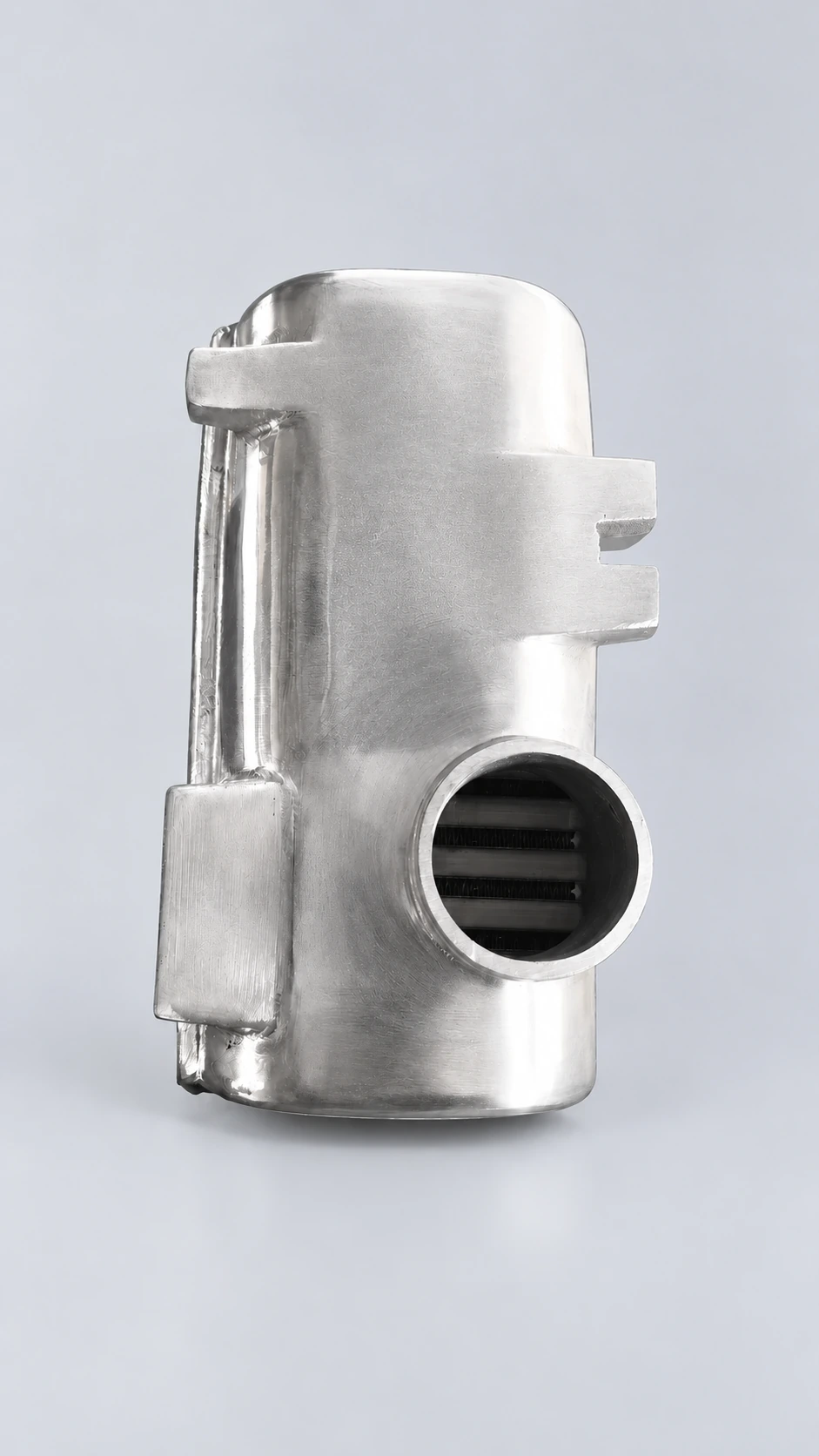

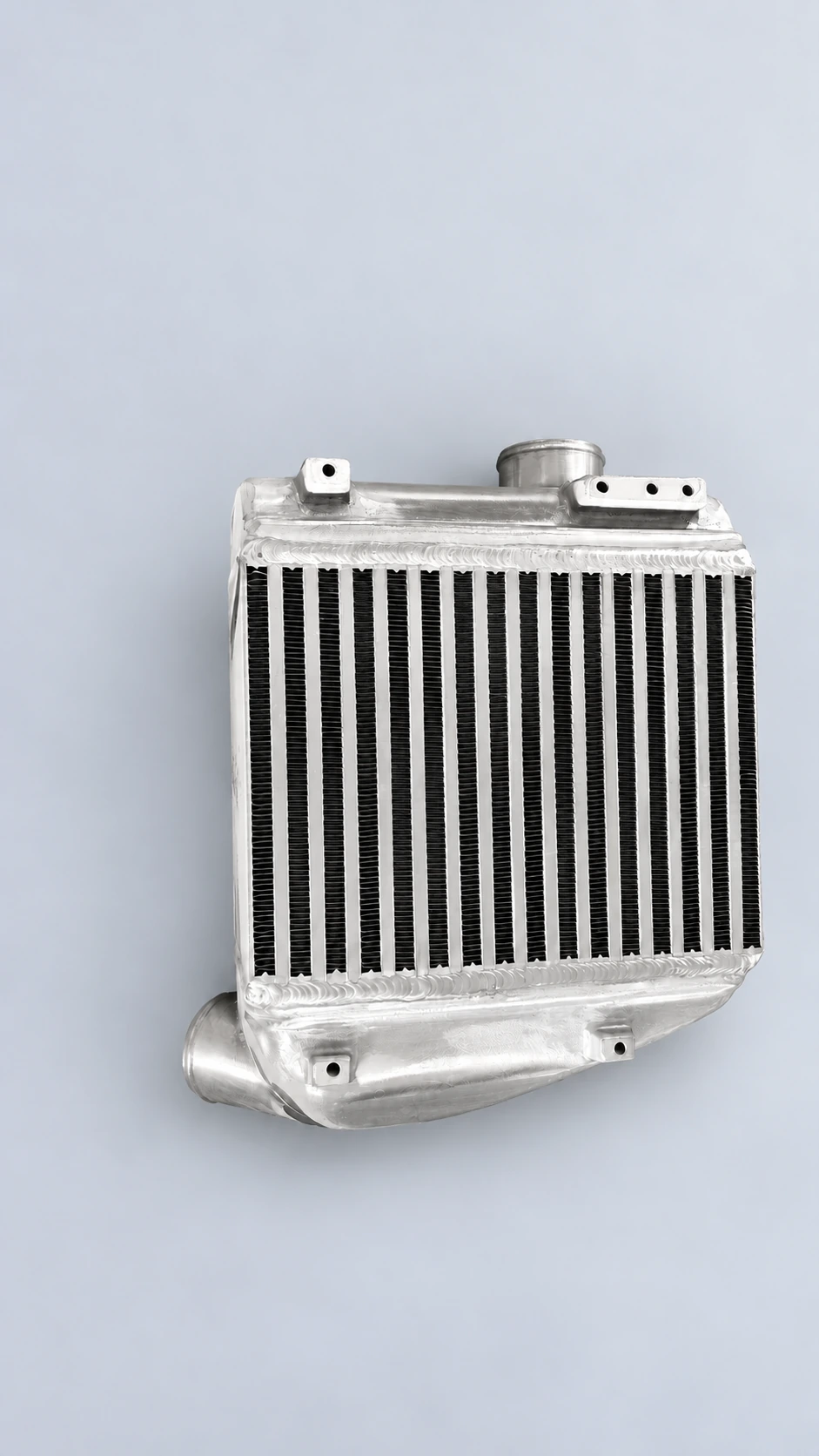

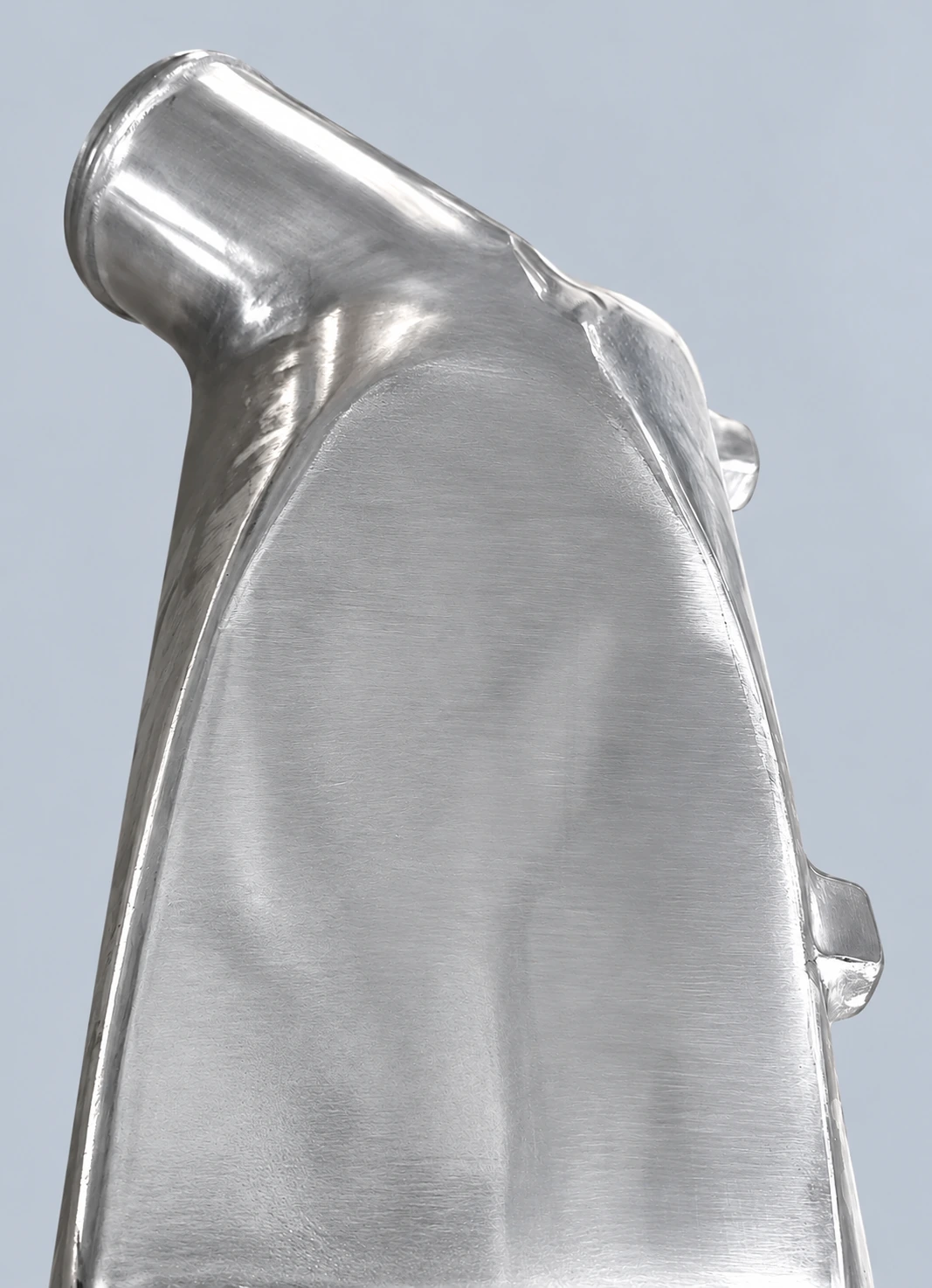

Real manufacturing details.
